GENERAL The Aeroscout UAV Transportation Unit allows protected transportation of the Aeroscout unmanned autonomous helicopter systems and components, in particular the Scout B1-100 UAV helicopter. The unit consists of two parts for the helicopter main body and the helicopter tail boom with the flight control system and the standard GCS ruggedized laptop. All additional items such as fuel tank, battery charger, mechanical tools, etc. are also located in the transportation unit.

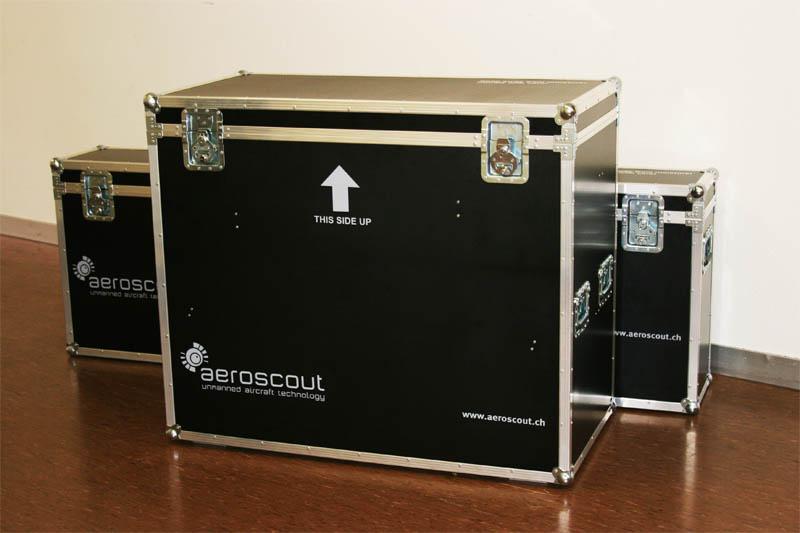

FEATURES The Aeroscout UAV Transportation Unit provides easy transportation of the Scout B1-100 UAV helicopter system with all required UAV field equipment. The transportation unit consists of one unit with easy removable wheels for the helicopter main body, and one unit for the helicopter tail boom. Internal fixations provide safe transportation of the overall UAV system during air transportation as well as during laboratory or van transportation. Further UAV equipment such as fuel cans, tools, battery chargers, etc. can easily be placed within the transportation units. Both units provide several retractable handles for simplified fastening. In addition, both units can be locked with a key.

Special Note: The material used fulfills standard international import and export regulations.

Technical Data

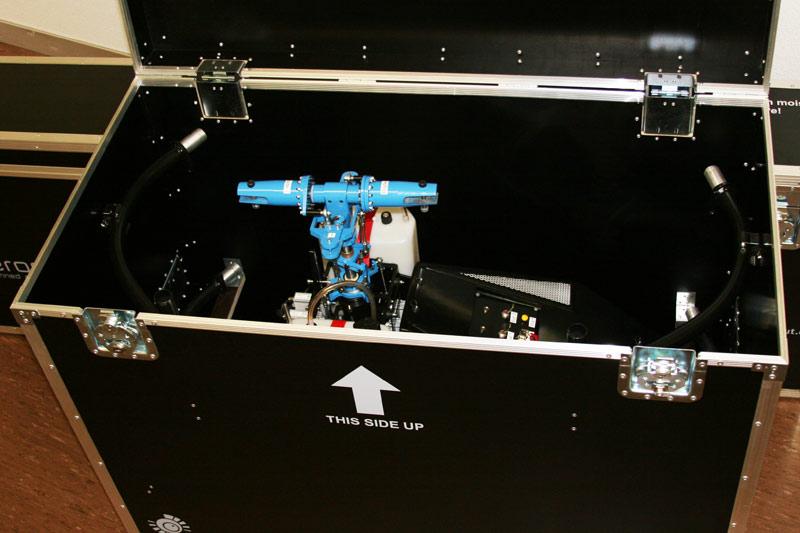

Unit 1 (Main body)

Length 1.24 m
Width 0.64 m
Height 1.05 m (without wheels)
Wheels 4 removable wheels
Empty weight 45 kg (approx.)
Content UAV main body, landing skids, tools, battery charger, fuel can, etc.
Material Aluminum / coated plywood
Temperature range -40 - 65 °C

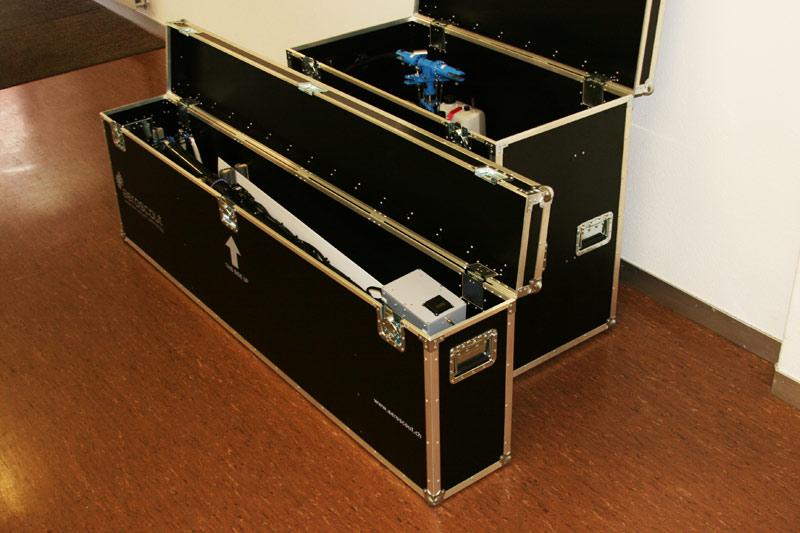

Unit 2 (Tail boom)

Length 2.25 m
Width 0.34 m
Height 0.86 m
Wheels no wheels (only optional)
Empty weight 35 kg (approx.)
Content UAV tail boom, main rotor blades, additional UAV tools, spare parts, etc.
Material Aluminum / coated plywood
Temperature range -40 - 65 °C



Features

  • Easy transportability of complete Aeroscout UAV system
  • Standard fixation of helicopter main body and tail boom
  • Customized mechanical installations available
  • Removable wheels for air transportation
  • Multiple retractable handles
  • Dust and spray water protected UAV system
  • Easy (temporary) storage of exhibition materials (e.g. booth components)
  • Built-in locks for secured storage and transportation
  • Durable materials
  • Material fulfills international import/export regulations
